Analysis of the Automated Feeding Process for Industrial Planers

Analysis of the Automated Feeding Process for Industrial Planers

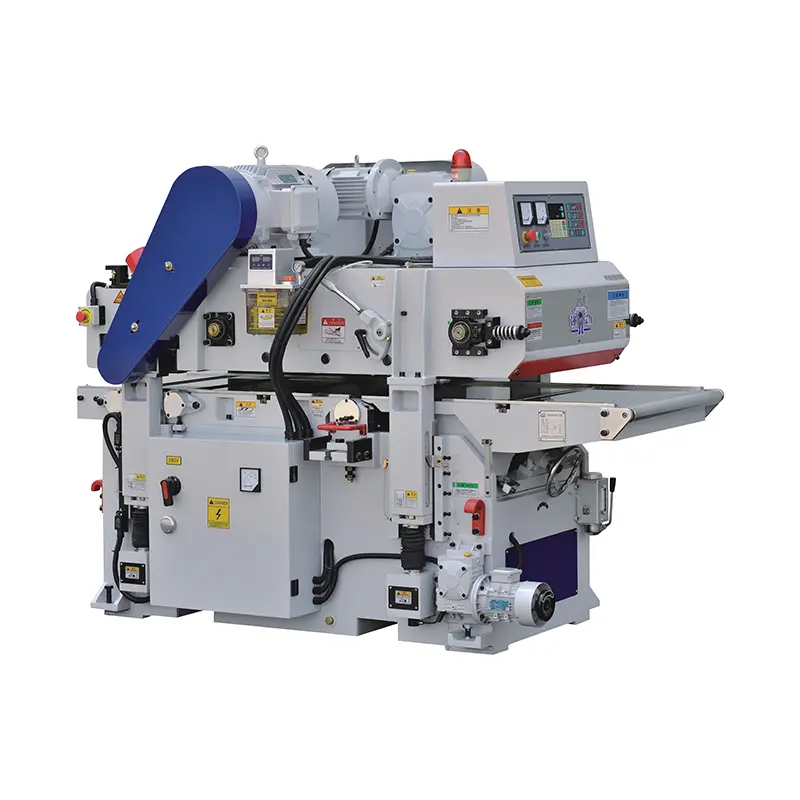

In industrial planing, the feeding process is the critical link between “raw materials” and “finished products.” Traditional manual or semi-automated feeding methods often face efficiency bottlenecks, fluctuating precision, and high labor costs. These pain points are particularly prominent in heavy-duty, high-volume, or high-precision planing applications. The emergence of automated feeding not only reshapes the production process for industrial planers but also represents a key breakthrough for manufacturers to increase production capacity, ensure quality, and reduce costs. This article comprehensively analyzes the automated feeding process for industrial planers from four perspectives: process composition, key technologies, classified applications, and core value, providing a reference for manufacturers to select and upgrade.

I. Core Components of the Automated Feeding Process: Four Systems Build a Stable Process

Automated feeding for industrial planers is not a single piece of equipment, but rather a comprehensive system comprised of four collaborative systems: feeding execution + power drive + intelligent control + precision detection. Each system has a clear division of labor and works together to automate the entire process: precise gripping – stable conveying – real-time monitoring – and error correction.

Feeding mechanism: As the core component that directly contacts the material, the “robot” that executes the process needs to be designed to accommodate different forms of processed materials (such as plates, profiles, and bars). Common types include:
Roller feeding: This uses friction between two sets of upper and lower rollers to propel the material forward. It is suitable for plates and thin workpieces with uniform thickness, offering high conveying speeds and minimal surface damage.
Gripper feeding: This uses pneumatic or hydraulic grippers to clamp the material and then transport it linearly. It is suitable for long profiles and irregular workpieces. It features stable grip and high positioning accuracy, preventing material shifting.
Suction cup feeding: This utilizes vacuum suction cups to hold the material. It is primarily used for large plates with smooth surfaces or easily deformed workpieces. It reduces material damage and improves loading and unloading efficiency.

Drive System: The “heart” of the power output, the drive system provides precise power to the feed mechanism, directly impacting conveying speed and positioning accuracy. Mainstream solutions fall into two categories:

Servo Drive: Utilizing a servo motor paired with a precision reducer, this system achieves millisecond-level speed and position control, making it suitable for high-precision planing applications (such as mold parts and precision components), with positioning errors controlled to within ±0.02mm.

Stepper Drive: Drives are driven by a stepper motor in response to pulse commands. This system is less expensive than a servo drive and is suitable for high-volume rough machining with lower precision requirements (such as ordinary steel structures), offering a more cost-effective solution.

Control System: The “brain” of process coordination, the control system integrates the operations of the planer machine and the feed system, ensuring a synchronized “feeding-planing-removal” cycle. Core components include:

PLC (Programmable Logic Controller): Implements basic logic control, such as feed speed setting and travel limit protection, and is suitable for simple process applications. Motion controllers: Support multi-axis linkage control and preset feeding parameters (such as step size, number of times, and intervals) for different workpieces. They are suitable for complex, multi-product machining and seamlessly integrate with planer CNC systems (such as FANUC and Siemens).

Detection devices: These “eyes” of precision ensure real-time monitoring of material position and conveying status, enabling timely error correction. Key equipment includes:
Photoelectric sensors: Detect material in place, preventing “empty” or “missed” feeds and ensuring continuous machining.
Linear scales/encoders: Provide real-time feedback on the feed mechanism’s displacement, forming a closed-loop control loop with the control system to dynamically correct conveying errors and ensure consistent planing dimensions.
Pressure sensors: Installed in the clamping/suction cup mechanism, they monitor clamping force to prevent excessive force from damaging the material or insufficient force from causing it to slip.

II. Key Technologies for Automated Feeding: Breakthroughs in Precision and Efficiency

The advantages of automated feeding rely on three key technologies, which directly determine the stability, adaptability, and machining results of the feeding system.

Precision Control Technology: A “Correction Solution” for Millimeter-Level Errors. During planing, feeding accuracy directly impacts workpiece dimensional tolerances. Core control methods include:
Error Compensation Technology: Preset “mechanical backlash compensation values” and “temperature compensation coefficients” offset errors caused by mechanical wear and temperature deformation of the feed mechanism (such as speed deviations caused by servo motor heating).

Closed-Loop Feedback Control: A detection device (such as a linear encoder) transmits feed position data to the control system in real time. If deviations are detected, the system immediately adjusts the drive motor speed or stroke, implementing a dynamic “detection-correction-redetection” cycle.

Synchronization and Coordination Technology: Matching the Rhythm of Feeding and Planing. The planer blade of an industrial planer performs reciprocating linear motion. Feeding must occur within the planer’s working stroke (i.e., the “non-cutting period”). Otherwise, it can cause tool collisions or workpiece failure. Synchronization and Coordination Technology is implemented in two ways:

Timing Control: A preset planer stroke cycle is used to initiate feeding only when the planer blade is retracting (in the non-cutting phase). The planer blade then enters the cutting phase after feeding is complete. This technology is suitable for low-speed planing. Speed ​​Linkage: Linking the planer speed and feed speed via a motion controller ensures proportional synchronization between the feed action and the planer cutting speed (e.g., increasing the feed speed during high-speed planing), significantly shortening the processing cycle.
Adaptive Adjustment Technology: A flexible solution for complex working conditions. When the material undergoes thickness variations, uneven material quality, or surface impurities, adaptive technology automatically adjusts feeding parameters to prevent process failures.
Thickness Adaptation: Using a pressure sensor or laser thickness gauge to detect material thickness variations, the system automatically adjusts the clamping height or roller pressure to ensure stable conveying force.
Material Adaptation: Different feed accelerations and clamping forces are preset for materials of varying hardness (such as aluminum alloy and carbon steel) to prevent deformation of soft materials and slippage of hard materials.

III. Classification and Application Scenarios of Automated Feeding Processes

Automated feeding processes can be categorized into three main types based on the material form and planing requirements. Each type has distinct application scenarios and process characteristics. Process Type Compatible Materials Core Advantages Typical Applications
Automated Plate Feeding Thin metal sheets (thickness 0.5-20mm), wood panels High conveying speed (up to 10m/min), surface-damage-free Planing of container side panels, machine tool bed panel processing
Automated Profile Feeding Angle steel, channel steel, I-beams (length 3-12m) Stable conveying of long materials with high positioning accuracy Planing of construction machinery supports, steel structure connector processing
Automated Bar Feeding Round/square bars (diameter 10-80mm) Automatic loading and continuous conveying, no manual intervention required Planing of automotive axle blanks, rough machining of motor shaft parts

IV. The Core Value of Automated Feeding Technology: Reducing Costs and Increasing Efficiency for Manufacturing Enterprises

Compared to traditional feeding methods, the value of automated feeding technology for industrial planers lies not only in automation itself but also in the optimization of production processes across the entire process. This can be summarized in four key dimensions. Improved Efficiency: Breaking Through the Bottleneck of Manual Production. Traditional manual feeding requires one to two workers to operate the planer, and a single feeding takes approximately 30-60 seconds. The automated feeding system can reduce this time to 5-15 seconds and supports 24-hour continuous operation, eliminating the need for human oversight. Taking an 8-hour workday as an example, automated feeding can increase planer production capacity by 1.5-2 times, making it particularly suitable for large-volume production.

Ensuring Precision: Reducing Scrap and Rework Costs. Manual feeding is susceptible to operator fatigue and experience differences, leading to dimensional deviations in workpieces and a typical scrap rate of 3%-5%. Automated feeding, through closed-loop control and error compensation, can reduce scrap to below 0.5%, significantly reducing material waste and rework time. For example, for a workpiece priced at 100 yuan per unit, annual production of 100,000 pieces can save 250,000-450,000 yuan. Cost Optimization: Reduced Labor and Management Costs. Automated feeding can replace one or two operators, saving 72,000 to 144,000 yuan in annual labor costs, based on an average monthly salary of 6,000 yuan. Furthermore, the system allows for “one-click production changeovers” through preset parameters, reducing debugging time when processing multiple products and lowering the training costs of skilled workers.

Safety Upgrade: Avoiding Manual Operation Risks. Industrial planers have high-speed blades and high cutting forces. Manual feeding places workers in close proximity to hazardous areas, making it prone to workplace accidents. Automated feeding, through fully enclosed protection and photoelectric interlocks, achieves “human-machine separation,” fundamentally eliminating safety risks such as pinching and scratching, and meeting the safety production requirements of modern factories.

V. Conclusion: Automated feeding is the inevitable path for industrial planer upgrades.

With the manufacturing industry transitioning to “intelligent manufacturing,” competition in the industrial planer market has shifted from “single-machine performance” to “entire-process efficiency,” and automated feeding is a key driver of this transformation. Whether it is to improve precision, reduce costs, ensure safety, or adapt to multi-variety production, automated feeding provides manufacturing companies with a feasible solution.
