Application of Curved Surface Planing Technology on Industrial Woodworking Planers

Application of Curved Surface Planing Technology on Industrial Woodworking Planers

While flat planing is fundamental in industrial woodworking, curved surface planing is the key process that imbues wood with life. From the curved armrests of vintage furniture to the wooden moldings of modern architecture, from the curved contours of musical instrument resonators to the curved panels of ship interiors, curved surface planing directly determines the product’s appearance, texture, structural stability, and user experience. As the core equipment for this process, the industrial woodworking planer, with its technical adaptability and process optimization capabilities, is becoming a key breakthrough for companies to enhance their product competitiveness.

I. Curved Surface Planing Technology: The “Three-Dimensional Language” of Industrial Woodworking

The key difference between curved surface planing and traditional flat surface planing lies in its ability to cope with the irregular three-dimensional contours of wood. This requires not only ensuring smoothness and precision, but also preventing cracking and fluffing caused by uneven stress. In industrial production, the value of curved surface planing technology lies primarily in three dimensions:

1. Meeting Diverse Product Design Needs

Modern consumers’ aesthetic preferences for wood products have shifted from “uniformity and practicality” to “individuality and artistic flair.” For example, the curved wardrobe doors in high-end custom furniture, the curved edges of Nordic-style dining tables, and the rounded legs of modern Chinese-style furniture all require precise curved surface planing to achieve their design vision. Industrial wood planers can adapt to diverse requirements, from shallow to deep curves, and from single to compound curves, by adjusting tool paths and processing parameters, freeing designers’ creativity from being limited by processing technology.

2. Improving the Structural and Performance of Wood

Appropriate curved surface design not only enhances aesthetics but also optimizes the mechanical properties of wood. For example, the curved treads of solid wood stairs increase the anti-slip surface area while distributing the pressure of human weight on the wood. The curved surface of a violin top, a musical instrument, requires millimeter-level planing to ensure uniform sound wave transmission. The stable machining capabilities of industrial wood planers allow curved wood surfaces to strike a balance between aesthetics and practicality.

3. Reducing the Cost and Difficulty of Complex Machining

In the era of manual machining, the production of curved wood surfaces relied on the experience of craftsmen, resulting in low efficiency and difficulty in ensuring consistency. However, industrial wood planers, through automated control and specialized tooling, enable standardized mass production of curved surface machining. For example, when mass-producing curved wooden sofa frames, the planer can precisely replicate the curved contour with an error within 0.1mm, while increasing machining efficiency by 5-8 times and significantly reducing production costs.

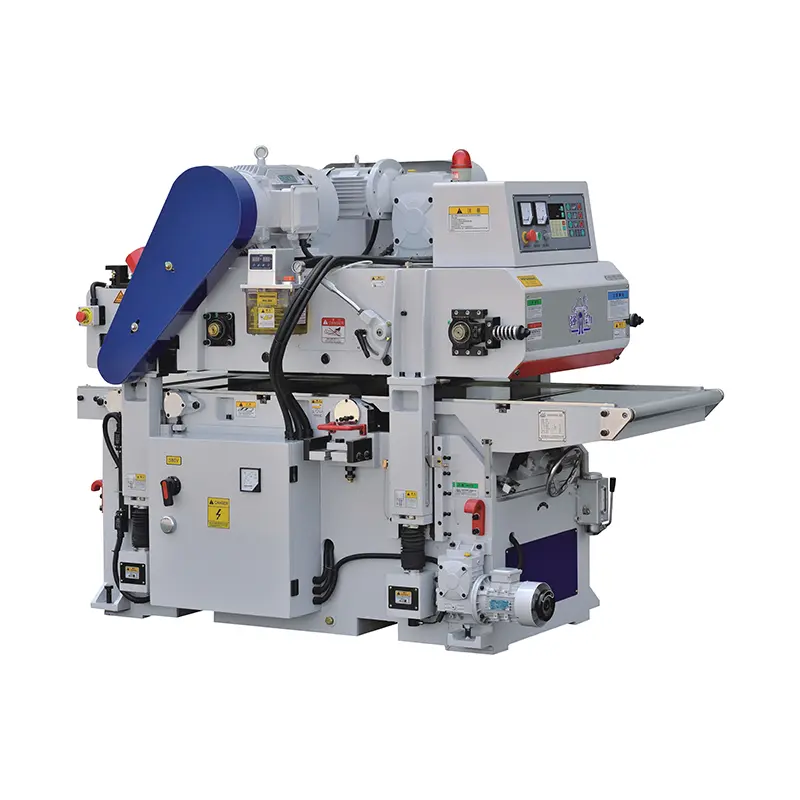

II. Core Features of Industrial Wood Planers Suitable for Curved Surface Planing

Not all wood planers are suitable for curved surface planing. Key technical features are required to ensure effective and stable processing:

1. Multi-axis Motion and Precision Control

The core of curved surface planing is to move the tool along a pre-set curved path. This requires the planer to have multi-axis motion (typically 3-5 axes). For example, when machining the curved edge of a wooden round table, the planer’s X-axis (horizontal), Y-axis (vertical), and Z-axis (vertical) must move in coordination, while the C-axis (rotary axis) drives the workpiece to rotate, ensuring the tool consistently follows the curved surface. Furthermore, the planer must be equipped with a high-precision servo motor and a numerical control system (such as a PLC or CNC) to control motion errors within 0.05mm to avoid unevenness or dimensional deviations on the curved surface.

2. Adjustable Tooling System and Clamping Device

Different curved surface machining scenarios require significantly different tooling requirements:

When machining shallow curved surfaces (such as the curved edge of a wooden door panel), a circular milling cutter is required, and the tool radius must match the surface radius.

When machining deep curved surfaces (such as the backrest of a wooden chair), a ball-end milling cutter is required to avoid interference between the tool and the wood.

When machining complex curved surfaces (such as the resonance box of a musical instrument), a forming cutter is required to complete the complex surface in a single cut.

Also, the planer’s clamping device must provide flexible fixation—for example, using vacuum cups or elastic clamps to secure the workpiece, to prevent deformation of the wood due to excessive clamping force, or workpiece shifting due to insecure clamping.

3. Wood Adaptability and Damage Prevention

The hardness and grain of different woods can affect curved planing results:

When processing hardwoods (such as oak and walnut), the planer requires high torque output to prevent tool jamming due to excessive resistance.

When processing softwoods (such as pine and fir), the cutting speed should be reduced and anti-hair cutting tools should be used to prevent burrs on the wood surface.

When processing knotty wood, the planer should have an automatic feed adjustment function that automatically reduces the feed speed when encountering knots to prevent tool breakage and wood cracking.

In addition, some high-end industrial planers are equipped with a wood grain recognition system. This system uses sensors to detect the direction of the wood grain and automatically adjusts cutting parameters to ensure a natural, smooth, and uniform grain after curved processing.

III. Typical Application Scenarios of Surface Planing on Industrial Woodworking Planers

From furniture manufacturing to architectural decoration, from musical instrument production to ship interiors, the application of surface planing technology in industrial woodworking has penetrated multiple niche applications. The following are common and representative application cases:

1. Furniture Manufacturing Industry: Creating Three-Dimensional Furniture with “Warmth”

In furniture manufacturing, surface planing is a core process for enhancing product quality. Typical applications include:

Curved structures in solid wood furniture: such as Nordic-style curved bookshelves, rounded table legs in modern Chinese-style furniture, and curved armrests in modern sofas. For example, with curved armrests, industrial woodworking planers utilize 5-axis motion to directly machine solid wood squares into a composite surface with both an outer and inner curve, while simultaneously sanding the surface to ensure a delicate feel.

Specially shaped components in custom furniture: such as the curved top line of a custom wardrobe or the curved guardrails of a children’s bed. Based on design drawings, a planer can import curved surface models through a CNC system for “one-click machining,” eliminating the need for manual adjustments and ensuring that each component’s dimensions perfectly match the surface contours.

For wooden frames of upholstered furniture, such as the curved backrest frames of fabric sofas and the curved edges of mattresses, planers can create “hollowed-out curved frames,” reducing weight while increasing toughness and ensuring a seamless fit between the frame and the foam and fabric.

2. Architectural Decoration Industry: Creating a “Natural” Spatial Aesthetic

In architectural decoration, curved wood is often used to create a “soft, natural” spatial atmosphere. Typical applications include:

Wooden decorative moldings, such as the curved wooden waistline in hotel lobbies and the curved ceiling moldings in villa living rooms. Industrial wood planers can mass-produce lines such as semi-circular arcs and wavy shapes, with lengths exceeding 6 meters, and a surface smoothness of up to Ra0.8μm, eliminating the need for secondary sanding.

Curved wooden curtain walls: Examples include curved wooden exterior walls in commercial buildings and curved wooden partitions in exhibition halls. Planers can process solid wood panels with a thickness of 10-50mm, creating large curved curtain walls through a splicing process while ensuring gaps at the joints are less than 0.5mm to prevent air leakage and water accumulation.

Wooden landscape features: Examples include curved wooden seats in parks and curved wooden corridors in scenic areas. Planers can process anti-corrosion woods (such as malva and balau). Curved planing improves ergonomics and user comfort while enhancing the wood’s corrosion resistance.

3. Musical Instrument Manufacturing: Pursuing “High-Precision” Acoustic Performance

Musical instrument manufacturing requires extremely high precision in surface planing, which directly impacts the acoustic performance of the instrument. Typical applications include:

Stringed instrument resonators, such as the tops and backs of violins and guitars. These components require a gradual curvature. For example, the difference between the center and edge curvatures of a violin top is only 2-3mm. Industrial wood planers utilize “micro-feed” technology to achieve this smooth curvature, ensuring uniform sound wave transmission.

Wooden components for wind instruments, such as the wooden barrels of flutes and clarinets, require planing machines to produce barrels with smooth inner curves and uniform outer diameters, while ensuring a wall thickness tolerance of less than 0.03mm to avoid “noise” during airflow.

Wooden drum shells for percussion instruments, such as those for jazz drums. The curved surface of the drum shell must be tapered. The planer uses a “rotary cutting” process to ensure that the diameter of the shell varies evenly from top to bottom, thus ensuring the “richness” and “resonance” of the drum sound.

4. Marine and Transportation Interiors: Balancing “Durability” and “Safety”

In transportation applications such as ships, high-speed trains, and RVs, curved wood surfaces must be impact-resistant and deformation-resistant. Typical applications include:

Curved panels for marine interiors: such as curved wooden ceilings on yachts and curved wooden walls on passenger ships. Industrial wood planers must process waterproofed solid wood panels. After curving, edge sealing is required to prevent seawater or moisture from penetrating the wood and causing deformation.

Wooden frames for high-speed rail seats: For example, the wooden armrests in business class seats on high-end high-speed trains. Planers are designed to process lightweight solid wood panels (such as birch or beech). The curved surface contours must conform to the curve of the human arm, while ensuring the frame’s load-bearing capacity exceeds 50kg to prevent breakage during use.

Curved wooden furniture for RVs, such as curved wardrobes and dining tables, can be processed using a planer. Planing allows for multi-layer solid wood panels, allowing the furniture to better fit within the confined space of an RV while ensuring smooth corners to prevent injury during operation.

IV. Optimization Solutions and Considerations for Curved Surface Planing on Industrial Woodworking Planers

To fully utilize the curved surface machining capabilities of industrial woodworking planers, a scientific optimization plan must be developed based on process requirements and equipment characteristics, while also avoiding common problems:

1. Optimizing Process Parameters: Adjust according to wood type and surface type

Cutting Speed: When machining hardwood, the recommended cutting speed is 15-20 m/s (to prevent tool overheating); when machining softwood, the cutting speed can be increased to 25-30 m/s (to improve efficiency);

Feed Speed: When machining shallow curved surfaces, the feed speed can be set to 5-8 m/min; when machining deep curved or complex surfaces, the feed speed should be reduced to 2-4 m/min (to ensure sufficient cutting depth);

Cutting Depth: The recommended single cutting depth should not exceed 2 mm. Especially when machining hardwood or thin-walled curved surfaces, a “multiple, small cuts” approach should be adopted to avoid wood cracking.

2. Tool Selection and Maintenance: Extending Tool Life and Ensuring Precision

Tool Material: When machining hardwood, choose high-speed steel or carbide tools (for increased wear resistance); when machining softwood, choose high-speed steel tools (for smoother cutting).

Tool Edge Preparation: New tools require sharpening to ensure a sharp edge. During use, check the edge for wear every 500 workpieces. If chipping or dulling occurs, replace or regrind it promptly.

Tool Installation: When installing the tool, ensure concentricity within 0.02mm to avoid ripples on the surface caused by tool eccentricity.

3. Workpiece Pre- and Post-Processing: Improving Processing Results and Stability

Pre-processing: Before processing, the wood must be dried to maintain a moisture content of 8%-12% (to prevent deformation after processing). Surface defects such as knots and cracks must also be removed. If these cannot be removed, the cutting path must be adjusted to avoid the defective areas.

Post-processing: After processing, the curved surface must be sanded (using an automatic sander) to remove burrs and knife marks. If painting is desired, the curved surface must first be primed to prevent the paint from seeping into the wood and causing color variations.

4. Daily Equipment Maintenance: Ensure Long-Term Stable Operation

Regular Cleaning: After each machining session, clean wood chips from the planer table and guide rails to prevent accumulation that could affect precision. Lubricate the guide rails weekly with a specialized lubricant to reduce friction.

Precision Calibration: The planer’s axis system accuracy must be calibrated monthly. If errors exceed the standard, adjust the CNC system parameters. Inspect the tool clamping device quarterly to ensure uniform clamping force.

Troubleshooting: If surface accuracy deviations occur during machining, first check the tool for wear and ensure the workpiece is securely clamped. Verify the CNC system parameters to avoid blindly adjusting the equipment.
