How to Choose a Rotary Cutter Head for a Planer
I. The Key Importance of Choosing the Right Rotary Cutter Head: Why is it the “heart” of planer processing?
As the core cutting component of a planer, the rotary cutter head directly determines machining accuracy, efficiency, and workpiece quality. Choosing the wrong cutter head can result in: excessive workpiece surface roughness (e.g., Ra values far exceeding tolerance), excessive cutter head wear (increasing tool change frequency by over 30%), and even damage to the planer spindle (repair costs reaching tens of thousands of yuan). Especially in international trade, machining quality directly impacts repurchase rates from overseas customers, making rational selection crucial.
II. Basic Compatibility: First, Identify the Core Parameters of the Planer and the Process
1. Matching the Planer’s “Hardware”
Planer Model and Power: Lightweight planers (power <5.5kW) are suitable for small and medium-sized cutter heads (diameter ≤120mm), while heavy-duty planers (power ≥11kW) can accommodate large-diameter cutter heads (160-250mm). For example, a gantry planer requires a high-rigidity cutter head to avoid vibration during high-speed cutting. Spindle Speed Range: The maximum speed of the cutter head must match the planer spindle speed (calculated as: Maximum Cutter Head Speed = π × Cutter Head Diameter × Maximum Spindle Speed / 1000). For a spindle speed of 1500 rpm, the linear speed of a 100mm diameter cutter head is approximately 471 m/min. Select a cutter head with the appropriate linear speed rating.
Mounting Interface Type: Common interfaces include ISO taper shanks, BT shanks, and HSK shanks. European and American customers often use HSK high-speed shanks. Ensure that the planer spindle interface and cutter head shank are compatible. 2. Core Indicators for Anchoring Machining Requirements
Material Characteristics:
Metal Machining (Steel, Aluminum, Cast Iron): Prefer carbide (WC-Co) or cubic boron nitride (CBN) cutter heads with a hardness of ≥HRC60.
Wood/Plastic Machining: High-Speed Steel (HSS) cutter heads offer better value and a sharper cutting edge.
Difficult-to-machine Materials (Titanium Alloys, High-Temperature Alloys): Choose ceramic or diamond-coated cutter heads.
Machining Accuracy Requirements: For high-precision machining (tolerance ≤ 0.01mm), select a cutter head with a dynamic balance grade of G2.5 or higher and an edge runout of ≤ 0.005mm. For general roughing, this can be relaxed to G6.3.
Machining Efficiency: For high feed speeds (>500mm/min), select a multi-flute cutter head (4-8 flutes). For deep groove machining with challenging chip evacuation, select a cutter head with 3 flutes or fewer and a large chip volume.
III. Advanced Selection: Dissecting the Core Performance Parameters of Rotary Cutters
1. Cutting Head Material: The “Foundation” that Determines Cutting Life and Cutting Capacity
Material Type
Hardness (HRC)
Applicable Materials
Life Advantages
Notes
High-Speed Steel (HSS)
58-62
Wood, Aluminum, Mild Steel
Good Toughness, Easy to Resharpen
Not Suitable for High-Speed Cutting
Carbide
86-92
Steel, Cast Iron, Non-ferrous Metals
Life 5-10 Times That of HSS
Prone to Chipping Under Impact Loads
Ceramics
90-95
High-Temperature Alloys, Hardened Steel
High-Temperature Resistant (Up to 1200°C)
High Brittleness, Requires a Stable Cutting Environment
Diamond Coating
98
Non-ferrous Metals, Non-metals
Excellent Surface Finish
Cannot Machining Ferrous Metals
2. Number of Flutes and Flutes: The “Key” to Balancing Efficiency and Finish
Number of Flutes: 2 Cutting edges are suitable for deep cutting and chip removal; 3-4 cutting edges balance efficiency and smoothness; 5 or more cutting edges are suitable for high-speed finishing (such as mirror finishing of aluminum alloys).

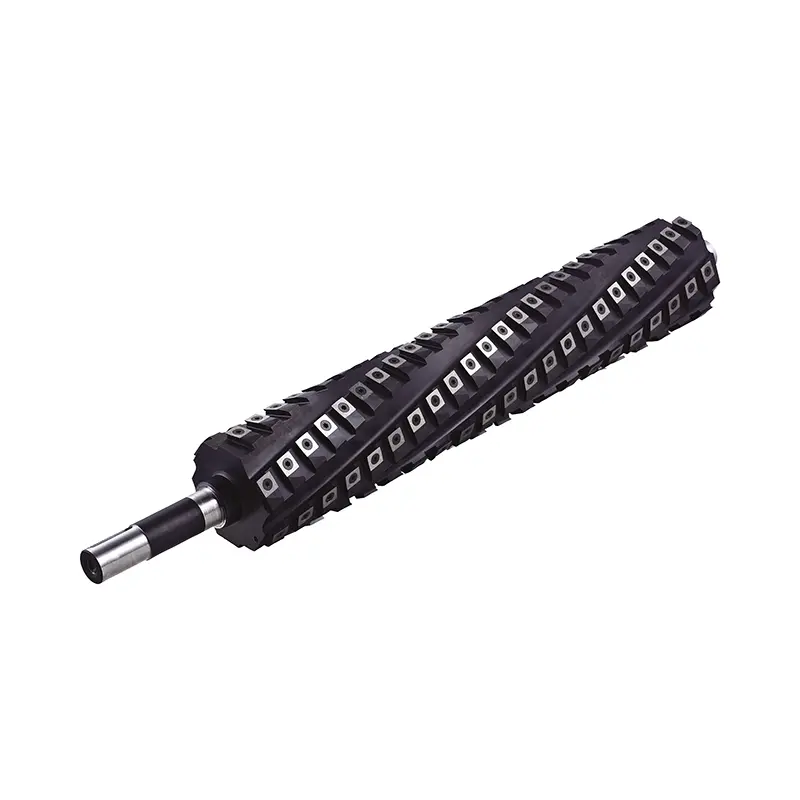

Cutting edge design: Straight cutting edges offer high cutting resistance and are suitable for roughing; spiral cutting edges (helix angle 30-45°) offer smooth cutting and are suitable for finishing; corrugated cutting edges reduce vibration and are suitable for machining thin-walled parts.
3. Other key parameters cannot be ignored
Diameter and length: The cutting edge diameter should be 10-20mm larger than the workpiece width (to avoid edge residue); the cutting edge length should meet the machining depth and allow for spindle overhang (generally ≥ 1.5 times the cutting edge length).
Coating technology: AlTiN coating is suitable for high-speed cutting of steel, TiCN coating is suitable for non-ferrous metals, and DLC coating reduces friction (suitable for sticky materials such as aluminum alloys).
IV. Pitfall Avoidance Guide: 3 Common Selection Mistakes Beginners Make
1. Focusing Only on Price and Ignoring Compatibility
Low-priced cutter heads may have issues such as poor dynamic balance and excessive material impurities. For example, a foreign trade customer selected a cheap carbide cutter head to save costs. The head broke during machining, resulting in not only scrapped workpieces but also damage to the planer spindle, with losses far exceeding the price difference.
2. Blindly Pursuing “High Specifications”
Equipping a lightweight planer with a large-diameter cutter head can cause spindle overload. Using a ceramic cutter head for processing softwood can reduce efficiency due to rapid edge wear. The principle of “matching to needs” should be adhered to, not simply “the higher the specifications, the better.”
3. Neglecting After-Sales and Technical Support
When purchasing from foreign trade, if there are any compatibility issues with cutter heads, rapid technical support is essential. Prioritize brands that offer a one-year warranty and selection guidance (such as international brands like Sandvik and Kennametal, or reputable domestic manufacturers).
V. Summary: Quickly Locate the Right Rotary Cutters in 3 Steps
Establish the Basics: Record the planer’s power, spindle speed, and interface type to clearly identify the material, precision, and efficiency requirements.
Choose the Core: Select the material based on the material, the balance level based on precision, and the number of blades based on efficiency.
Check the Details: Confirm the coating, diameter, and after-sales guarantee to avoid low-price traps.
