In solid wood processing, planing is a critical process that determines the final quality of the panel. Whether in furniture manufacturing, flooring production, or custom woodworking, precise control of planing parameters directly impacts the panel’s flatness, surface finish, processing efficiency, and even determines the utilization of wood resources. However, faced with solid wood panels of varying species, thicknesses, and grain orientations, many processors often struggle with parameter confusion—whether they suffer from chipping due to excessive cutting depth, surface fuzz due to inappropriate feed rates, or wasted processing time due to inappropriate spindle speeds.

This article will examine the core factors influencing solid wood panel planing and systematically analyze the logic behind setting optimal process parameters. Drawing on application examples from various scenarios, this article provides a practical and adjustable parameter configuration solution to help you maximize production efficiency while ensuring processing quality.

First, understand the core of solid wood planing: first, understand the “three key variables that influence parameters.”

Before setting any process parameters, we must first understand that solid wood is not a “standardized material.” Its inherent characteristics directly influence planing results. Talking about “optimal parameters” without considering these variables is tantamount to empty talk. The following three core variables are the “prerequisites” for all parameter settings.

1. Solid Wood Species: Hardness and Grain Determine the “Basic Parameter Range”
The density, hardness, and fiber structure of different wood species vary significantly, directly affecting the tool’s cutting resistance and the board’s resistance to deformation during planing. Common solid woods are generally divided into three categories: “softwood,” “medium-hardwood,” and “hardwood,” and the corresponding planing parameter ranges vary significantly:
Softwoods (such as pine, fir, and fir): have low density (typically <0.5g/cm³) and loose fibers, resulting in low cutting resistance during planing, but are prone to “fiber tearing” (surface fuzz). Therefore, it’s important to maintain a low cutting depth and a slightly faster feed rate to avoid the tool “pulling” the wood fibers.

Medium-hardwoods (such as oak, walnut, and cherry): With a moderate density (0.5-0.8 g/cm³) and relatively uniform grain, they are ideal for planing, offering ample room for parameter adjustment to achieve a balance between efficiency and quality.

Hardwoods (such as rosewood, teak, and red sandalwood): With a high density (>0.8 g/cm³) and dense fibers, planing creates high cutting resistance, which can easily lead to rapid tool wear and heat and deformation. Therefore, it’s necessary to increase the spindle speed, reduce the cutting depth, and minimize the contact time between the tool and the wood.

2. Initial Board Condition: Moisture Content and Flatness Pretreatment Requirements

Many people overlook the impact of board pretreatment on planing parameters. In reality, even with precise parameter settings, it’s difficult to achieve ideal results with boards with excessively high moisture content or poor initial flatness.

Moisture Content: The optimal planing moisture content for solid wood boards is typically between 8% and 12% (the equilibrium moisture content range). If the moisture content is >15%, the wood’s internal moisture content is high, making it prone to edge chipping and cracking during planing, and the board is susceptible to shrinkage and deformation after processing. If the moisture content is <8%, the wood is too dry, increasing fiber brittleness, prone to surface debris, and reduced finish. Parameter adjustments are necessary in these situations: For boards with high moisture content, reduce the cutter depth (≤0.5mm); for boards with low moisture content, increase the feed rate (to reduce fiber compression). Initial Flatness: If the board exhibits noticeable warping, bending, or surface burrs, a “rough planing pre-treatment” is necessary. This involves using a larger cut depth (1-2mm) to quickly remove surface defects. Then, proceed to the “fine planing” stage to adjust parameters. Using fine planing parameters directly on uneven boards will result in uneven tool force and uncontrolled parameters.

3. Processing Objectives: The Essential Differences in Parameters Between Rough and Fine Planing

The planing process is typically divided into two stages: “rough planing” and “fine planing.” These two stages have different objectives and require completely different parameter setting logic, so they should not be confused:

The goal of rough planing is to quickly remove excess thickness and correct overall flatness, without pursuing a perfectly smooth surface finish. The core parameter logic is “efficient removal,” so a larger cut depth and a moderate feed rate are used. The goal of fine planing is to ensure the final thickness accuracy (≤0.1mm tolerance) and surface finish (free of burrs and tool marks). The core parameter logic is “precise finishing.” Therefore, the cut depth is minimized, and the feed rate and spindle speed must be matched to avoid surface defects.

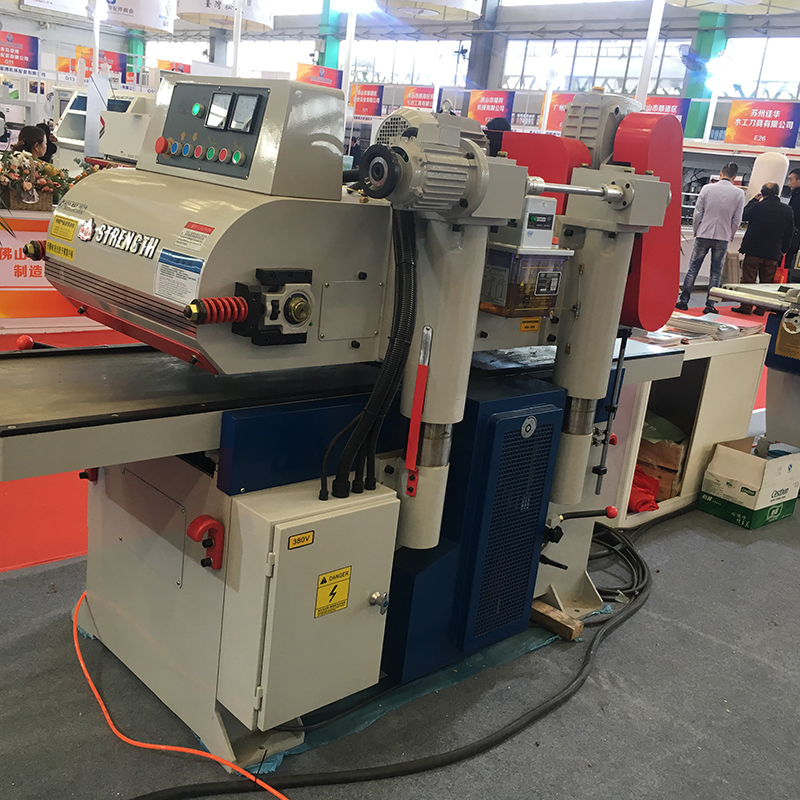

Second, Optimal Process Parameters for Planing Solid Wood: Analyzing the “Four Core Parameters” by Scenario

After clarifying the three variables mentioned above, we can move on to the “Parameter Setting” stage. The core process parameters of a planer include spindle speed, cut depth, feed rate, and tool selection. These four parameters are interrelated and mutually constrained, and need to be adjusted based on the specific scenario. The following describes the specific parameter ranges and adjustment methods for the three scenarios of “rough planing,” “fine planing,” and “special wood species.”

1. General Scenario: “Efficient Configuration of Rough Planing Process Parameters”
The core of rough planing is “rapid removal.” Therefore, parameter setting prioritizes efficiency while also avoiding damage to the board due to improper parameters. The basic parameter ranges applicable to all wood species are as follows (using a common woodworking planer as an example):

Parameter Type
Softwood (Pine/Fir)
Medium Hardwood (Oak/Walnut)
Hardwood (Mahogany/ Teak)

Notes

Spindle Speed ​​(r/min)

3000-4000

4000-5000

5000-6000

For hardwoods, increase the spindle speed to reduce tool-wood contact time.

Cutting Depth (mm)

1.5-2.0

1.2-1.8

1.0-1.5

Softwoods can be increased appropriately; hardwoods should be controlled to avoid edge chipping.

Feed Speed ​​(m/min)

8-12

6-10

5-8

Adjust the cutting speed to the cutting depth. Avoid excessive feed speed that may cause vibration.

Tool Selection

High-Speed ​​Steel (HSS)

High-Speed ​​Steel (HSS)

Carbide (WC)

Hardwoods require wear-resistant tools to minimize tool changes.

Operation Tips:

Before rough planing, check the board for metal impurities (such as nails or screws) to avoid tool damage.

If the board thickness tolerance is large (e.g., ±5mm), (See above). It’s recommended to perform rough planing in 2-3 passes, with each pass not exceeding 2mm to avoid overloading the planer.

After rough planing, check the board’s flatness with a ruler. If warping persists, adjust the planer table angle (usually within a range of 0-45°) and perform a second rough planing.

2. Key Scenario: “Quality Control Plan” for Fine Planing Process Parameters

Fine planing directly determines the final quality of the board. Parameter setting should prioritize precision, with particular attention paid to surface finish and thickness tolerance. The following are standard fine planing parameters for different wood species, suitable for applications requiring high surface quality, such as furniture panels and flooring substrates:

Parameter Type
Softwood (Pine/Fir)
Medium Hardwood (Oak/Walnut)
Hardwood (Mahogany/Teak)
Quality Requirements
Spindle Speed ​​(r/min)
4000-5000
5000-6000
6000-8000
The higher the speed, the better the surface finish (tool dynamic balancing is required).
Cutting Depth (mm)
0.2-0.5
0.1-0.3
0.1-0.2
The smaller the cutting depth, the smaller the thickness error (recommended ≤ 0.1mm).
Feed Speed ​​(m/min)
5-8
4-7
3-6
Match the feed speed to the spindle speed to avoid “fish scale” marks. Knife Marks
Tool Selection
Ultrafine Grain High-Speed ​​Steel
Carbide Blades (WC)
Diamond-Coated Blades
The cutting edge should be sharp, with an edge roughness of ≤ Ra0.8μm.

Quality Control Tips:

Before fine planing, clean the planer table and rollers to prevent impurities from being pressed into the board surface.

For woods with interlaced grains (such as oak and ash), it is recommended to adjust the planer angle to 25°-30° (common planer angles are 15°-20°) to minimize fiber tearing.

After fine planing, touch the board surface. If burrs are found, increase the spindle speed (e.g., by 500 rpm) or reduce the feed speed (e.g., by 1 m/min) and plan again.

Thickness Accuracy Control: Use a digital micrometer to measure the thickness at different locations (at least 5 points) on the board. The error should be within ±0.1mm. If the error exceeds the limit, adjust the planer roller pressure (usually within a range of 100-200°). 0.2-0.5MPa). 3. Special scenarios: “Parameter optimization scheme” for difficult-to-process wood species For some wood species with special textures, extremely high hardness or easy deformation (such as maple, ash, teak), conventional parameters are difficult to meet processing requirements and need targeted optimization. The following are parameter adjustment strategies for 3 types of difficult-to-process wood species: (1) Wood with staggered/spiral textures (such as oak and ash) Processing pain points: Fiber direction is chaotic, and it is easy to “break the edge” and “hair” during planing, and the surface finish is poor. Parameter optimization: Spindle speed: Increase to 6000-7000r/min (normal speed for medium hardwood is 5000-6000r/min); Planer angle: Adjust to 30°-35° to increase the “shearing force” of the tool on the fiber and reduce pulling; Cutting depth: Controlled to 0.1-0.2mm (50% less than conventional fine planing); Auxiliary measures: Apply tape (such as masking tape) in the opposite direction of planing to reduce edge chipping. (2) High-density hardwood (such as mahogany, rosewood) Processing pain points: High cutting resistance, rapid tool wear, and easy heating and deformation of the board. Parameter optimization: Spindle speed: Increase to 7000-8000r/min to shorten the contact time between the tool and the wood; Cutting depth: Strictly control within 0.1mm to avoid excessive load on the planer; Feed speed: Reduce to 3-5m/min to ensure sufficient cutting of the tool; Tool selection: Use diamond-coated blades, which have a wear resistance 3-5 times higher than that of carbide and reduce the number of tool changes; Cooling measures: If the processing batch is large, it is recommended to install an air cooling device at the planer (temperature controlled at <40℃) to prevent the wood from discoloring due to high temperature. (3) Soft and easily deformed wood (such as pine and fir) Processing pain points: The fibers are loose, prone to “dents” and “indentations”, and the thickness accuracy is difficult to control. Parameter Optimization:

Spindle speed: 4000-4500 rpm (avoid excessive speed and fiber tearing);

Cutting depth: 0.3-0.5 mm (slightly larger than conventional fine planing to reduce tool “crushing” of the wood);

Feed speed: 7-9 m/min (faster feed to reduce the time the wood spends on the worktable);

Roller pressure: reduced to 0.2-0.3 MPa (normal pressure is 0.4-0.5 MPa) to prevent roller damage to the wood surface.

d. Parameter Setting “Pitfall Avoidance Guide”: 5 Common Mistakes and Solutions

Even if you understand the parameter ranges, in actual operation, oversights can still lead to machining failures. Below are 5 common parameter setting mistakes and their corresponding solutions to help you avoid “ineffective machining.” 1. Mistake 1: Ignoring Tool Wear: Even Precise Parameters Are Useless

Symptoms: Even if the parameters meet the standards, “knife marks,” “burrs,” and even “gnawing” (grooves of varying depths) may appear on the board surface.

Cause: The planer blade is worn (edge ​​radius > 0.1mm), preventing it from effectively cutting the wood fibers and instead squeezing or pulling them.

Solution:

Regularly inspect the tool edge (recommended every 500 square meters of board processed). If wear is detected, sharpen or replace the tool promptly.

When sharpening, ensure a consistent edge angle (e.g., 25° for precision planers) to avoid uneven edges.

For carbide tools, it is recommended to use a dedicated sharpener (accuracy ≤ 0.01mm) to avoid angle deviations caused by manual sharpening. 2. Error 2: Spindle Speed ​​and Feed Rate Mismatch, Surface “Fish Scale” Pattern

Symptom: Regular, wavy cuts resembling fish scales appear on the surface of the sheet, affecting the aesthetics.

Cause: An improper ratio between spindle speed and feed rate results in excessively low or high overlap between adjacent cuts. Solution:

Calculation formula: Cutting speed (m/s) = π × Spindle diameter (m) × Spindle speed (r/min) / 60. The feed rate must match the cutting speed. Typically, the feed rate per revolution is controlled within 0.1-0.3 mm/r/min.

For example: If the spindle diameter is 100 mm (0.1 m) and the speed is 5000 r/min, the cutting speed = 3.14 × 0.1 × 5000 / 60 ≈ 26.17 m/s. Should the feed rate be controlled within 5000 × 0.1 – 5000 × 0.3 = 500-1500 mm/min, which is 0.5-1.5 m/min? No, this needs to be corrected: Feed speed (m/min) = Spindle speed (r/min) × Feed per revolution (mm/r/min) / 1000. If the feed rate is 0.2 mm/r/rev and the speed is 5000 rpm, then the feed rate = 5000 × 0.2 / 1000 = 1 m/min? In practice, the feed rate of a woodworking planer is typically measured in m/min and ranges from 3 to 12 m/min. Therefore, a simpler approach is: if fish scale marks appear, increase the spindle speed by 500-1000 rpm or reduce the feed rate by 1-2 m/min until the cuts disappear.

3. Error 3: Cutting with a single stroke, resulting in chipping of the board or planer overload

Symptoms: When machining hardwood, large pieces of the board’s edge may chip; or the planer may make unusual noises or the motor current may be excessive (exceeding 120% of the rated current).

Cause: The cutting depth exceeds the wood’s tolerance or the planer’s load capacity. Solution: When machining hardwood, the initial cut depth should not exceed 1mm. If the thickness of the planer needs to be removed 3mm, it is recommended to perform the cut in three passes (1mm + 1mm + 1mm). Check the planer’s rated power (e.g., 3kW, 5kW) and calculate the maximum cut depth based on the power: Maximum cut depth (mm) = (rated power × efficiency factor) / (feed speed × wood density × cutting width) (The efficiency factor is typically 0.7-0.8). If the planer is overloaded, stop the machine immediately, reduce the cut depth or feed speed, and wait for the motor to cool before re-machining.
4. Mistake 4: Ignoring the wood grain direction and using the same parameters for both along and across the grain
Symptom: The surface is smooth when planing along the grain, but “splits” and “burrs” appear when planing across the grain.
Cause: The cutting resistance along the grain (fiber orientation) of the wood is much lower than across the grain. Failure to differentiate parameters results in different machining results.
Solution:
Planing along the grain: Conventional parameters can be used (e.g., fine planing speed 5000 rpm for medium hardwood).

Engagement 0.2mm, feed rate 6m/min);

Cross-grain planing: Parameters require adjustment—increase the speed by 1000-2000 rpm, reduce the engagement by 50% (e.g., 0.1mm), and reduce the feed rate by 20%-30% (e.g., 4.5m/min).

For diagonal-grain wood (with the grain at a 45-90° angle to the planing direction), parameters should be between with and across the grain. Planing from the “uphill” direction of the grain (i.e., the tool contacts the higher part of the grain first) is recommended to minimize edge chipping.

5. Mistake 5: Immuting parameter settings and ignoring adjustments during batch processing

Symptom: Initial board quality is acceptable, but surface quality deteriorates after processing 100 boards.

Cause: Tool wear, varying moisture content of the wood batch, or increased planer temperature, rendering the initial parameters no longer applicable. Solution:

During batch processing, randomly select one board every 20-30 boards to check for surface finish and thickness tolerance. If any issues are detected, fine-tune the parameters (e.g., increase the rotational speed by 500 rpm or reduce the cut depth by 0.05 mm).

If the moisture content of the wood batch varies significantly (e.g., from 10% to 14%), readjust the cut depth (reduce by 0.1-0.2 mm) and feed speed (increase by 1-2 m/min).

If the planer has been running continuously for more than 2 hours, stop for 10-15 minutes to allow the motor and worktable to cool before resuming processing to prevent high temperatures from affecting parameter stability.
