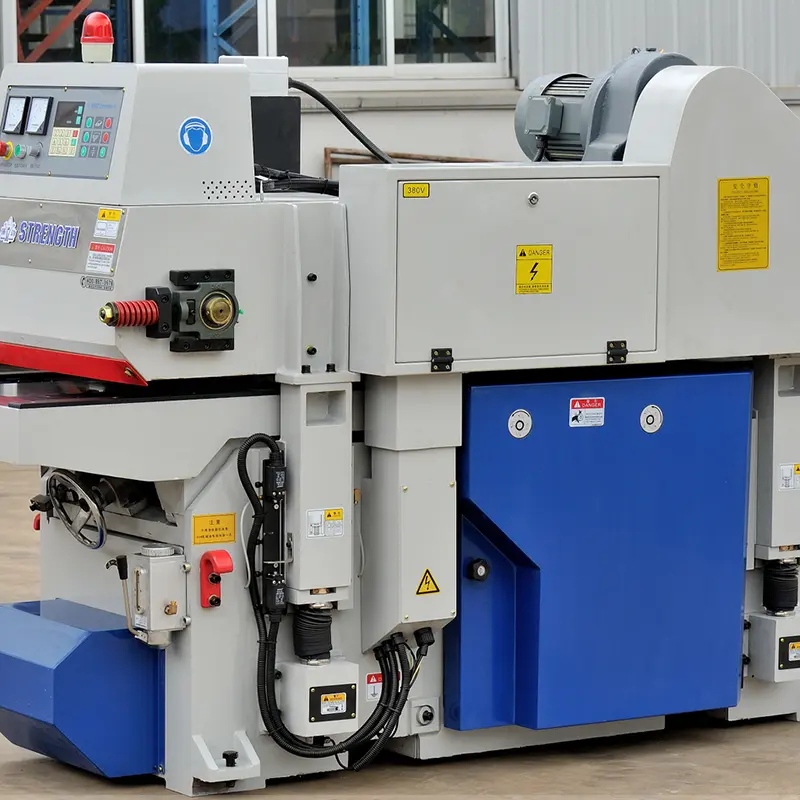

Industrial Heavy-Duty Automatic Planers: A “Heavyweight” in Industrial Manufacturing that Breaks the Convention
In the vast industrial manufacturing ecosystem, machine tools, as the “mother machines of industry,” support production operations across various industries. Within this family of machine tools, industrial heavy-duty automatic planers, with their unique positioning and performance, have become indispensable core equipment in key sectors such as heavy machinery, aerospace, and shipbuilding. Compared to conventional light- and medium-duty planers or other cutting machines, the “specialness” of industrial heavy-duty automatic planers lies not only in their size and weight, but also in their technical principles, application scenarios, and performance requirements. These heavy-duty planers are truly capable of tackling tough challenges in industrial manufacturing.
I. Load Capacity: A Scale Leap from “Machining Parts” to “Machining Components”
Conventional planers are typically used to machine small and medium-sized parts, such as machine tool guide rails, housing surfaces, and connecting rod end faces. Their worktables typically support loads of several tons, while the workpieces they machine typically weigh tens to hundreds of kilograms. The primary unique feature of industrial heavy-duty automatic planers lies in their exceptional load-bearing capacity, enabling a fundamental leap from machining parts to machining large components.
The worktable dimensions of these planers are typically measured in meters, with common table lengths ranging from 5 to 15 meters and widths from 1 to 3 meters. Some customized machines even boast extra-long tables exceeding 20 meters. This is matched by an astonishing load-bearing capacity—the worktable’s rated load capacity generally ranges from 10 to 50 tons, with high-end models exceeding 100 tons. These machines can easily handle massive loads such as large machine tool beds, ship engine blocks, hydropower station spindles, and aerospace vehicle frames. To achieve this characteristic, heavy-duty automatic planers feature a comprehensive structural design enhancement. The bed is constructed of integrally cast gray cast iron or ductile iron, with rigidity enhanced by a strategically arranged ribbed structure. Some ultra-heavy models even utilize a composite bed combining welded steel and cast iron. The worktable guides utilize extra-wide, extra-thick rectangular or triangular rails, combined with a high-precision scraping process to ensure stable motion accuracy even under heavy loads. The bed and foundation are secured with specialized shock-absorbing washers and anchor bolts to prevent movement or vibration during heavy-load machining.
II. Machining Accuracy: Millimeter-Level Control and Micron-Level Pursuit under Heavy-Load Conditions
For standard planers, achieving IT7-IT8 machining accuracy and a surface roughness of Ra3.2-1.6μm is sufficient to meet most general requirements. However, the large components processed by heavy-duty industrial automatic planers are often the backbone of core equipment, and their precision directly determines the performance and lifespan of the entire machine. For example, a 0.1mm deviation in the parallelism of the guideways of a large machine tool bed can result in a precision deviation exceeding 0.05mm in the subsequent machining of parts. Substandard flange flatness on a ship’s propulsion shafting can cause serious problems such as vibration and increased wear. Therefore, high-precision control under heavy loads is another key characteristic of these machines. To achieve this goal, heavy-duty automatic planers incorporate several precision control technologies:
Precisely matched drive systems: High-power servo motors are combined with high-precision ball screws (or racks). Some ultra-heavy models even utilize linear motors. Through the closed-loop control of the servo system, the worktable achieves positioning accuracy of 0.01-0.005 mm/m.
Real-time compensation for dynamic accuracy: High-precision detection devices such as grating scales and laser interferometers monitor errors such as worktable displacement and thermal deformation in real time. The CNC system’s error compensation algorithm automatically corrects the machining trajectory to offset the effects of structural deformation under heavy loads.
Stable tool support: The toolholder is constructed of high-strength alloy and equipped with automatic clamping and tool compensation functions. Some models also incorporate tool wear monitoring, ensuring stable cutting posture and accuracy during long, heavy-duty cutting operations.
Strict temperature control: Constant-temperature cooling systems are installed in key components such as the machine bed and worktable, using circulating water or oil to control temperature fluctuations. The machining accuracy is maintained within ±1°C, preventing thermal deformation of the structure caused by temperature fluctuations from affecting machining accuracy.
Currently, high-end industrial heavy-duty automatic planers have consistently achieved IT6 machining accuracy, with surface roughness down to Ra0.8μm. Some customized equipment can even achieve micron-level precision control, meeting the stringent requirements of high-end fields such as aerospace.
III. Cutting Performance: Hard-core Capability for Handling Ultra-Hard, Ultra-Thick, and Ultra-Large Materials
Conventional planers mostly cut conventional materials such as 45 steel and cast iron, with thicknesses typically ranging from 1-5 mm and cutting speeds of 10-30 m/min. Industrial heavy-duty automatic planers, on the other hand, often handle specialized materials that are “ultra-hard, ultra-thick, and ultra-large,” such as alloy structural steels with a hardness exceeding HRC50, steel plates exceeding 100 mm in thickness, and large forgings with diameters of several meters. This requires exceptional cutting performance, capable of maintaining stable machining efficiency and tool life under heavy-duty cutting conditions. This “hardcore strength” stems primarily from three key design elements:
High-power cutting system: The main motor power generally ranges from 30-100kW, with some ultra-heavy models exceeding 200kW. This provides sufficient cutting torque for deep cuts of 10-20mm. Furthermore, the spindle box features a multi-speed transmission mechanism that adjusts the cutting speed according to material hardness and cutting requirements, ranging from 5-50 m/min, ensuring both efficiency and tool protection.
High-strength tooling and fixtures: Equipped with dedicated heavy-duty planing cutters, the cutter heads are constructed from ultra-hard materials such as carbide and cubic boron nitride (CBN), capable of withstanding cutting forces of up to several thousand Newtons. Workpiece fixtures utilize hydraulic or mechanical clamping, capable of clamping forces of several tons, ensuring that large workpieces do not loosen or shift during cutting.
Efficient coordination of chip removal and cooling: Due to the high cutting volume, the heavy-duty automatic planer is equipped with a high-flow cooling system (coolant pump flow rate can reach 100000). 100-300L/min), high-pressure cutting fluid is used to directly flush the cutting area, reducing tool temperatures. Furthermore, a chain-type or scraper-type chip conveyor, combined with a tilting worktable design, rapidly removes large quantities of chips, preventing chip accumulation that could affect machining accuracy or damage the equipment.
Thanks to these features, industrial heavy-duty automatic planers can easily handle “heavy” tasks such as rough machining of large forgings, surface planing of large castings, and flat machining of ultra-thick steel plates, often difficult for conventional equipment. Their processing efficiency can reach 3-5 times that of ordinary planers.
IV. Automation and Intelligence: “Flexible Upgrade” of “Heavy Equipment”
Traditional heavy-duty planers are mostly manual or semi-automatic, relying on experienced workers for manual adjustments and control. This results in low processing efficiency, high labor intensity, and difficulty maintaining stable precision. A key feature of modern industrial heavy-duty automatic planers is their deep integration of automation and intelligent technologies, enabling flexible production upgrades for “heavy equipment” to meet the mass production and customization needs of modern manufacturing. Its automation and intelligence are reflected in multiple dimensions:
Fully automated machining processes: Integrated CNC systems (such as the Siemens 840D and FANUC 31i) support G-code and graphical automatic programming. Workers simply input machining parameters and workpiece drawings, and the equipment automatically completes the entire process, including workpiece clamping and inspection, tool selection, cutting, and precision inspection. Some machines are also equipped with automatic loading and unloading systems (such as robots and crane-type loading mechanisms), enabling 24-hour unmanned production.
Adaptive machining control: Sensors monitor cutting force, tool wear, vibration, and other parameters in real time. The CNC system automatically adjusts parameters such as cutting speed and feed rate based on preset algorithms. For example, when tool wear is detected, the feed rate is automatically reduced to extend tool life. When cutting force exceeds a threshold, processing is automatically paused and an alarm is issued to prevent equipment damage.
Remote Monitoring and Maintenance: Equipped with an Industrial Internet module, this system supports remote monitoring of equipment operating status (such as processing progress, fault alarms, and energy consumption data) via mobile phones, computers, and other terminals. Furthermore, manufacturers can use the remote diagnostic system to promptly troubleshoot equipment failures, reduce downtime and maintenance, and lower user operation and maintenance costs.
Data-driven Management: This system automatically records processing parameters, accuracy data, tool life, and other information for each batch of workpieces, creating a production database that facilitates quality traceability, process optimization, and production plan adjustments.
V. Application Scenarios: Focusing on the Core Manufacturing Process of “National Key Equipment”
Conventional planers have a wide range of applications, covering general machinery, automotive parts, hardware processing, and other fields. However, the uniqueness of industrial heavy-duty automatic planers lies in their focus on the core manufacturing process of “national key equipment,” providing a key support for the localization of large-scale equipment. Its main application areas include:
Heavy Machinery Manufacturing: Machining large machine tool beds, columns, beams, and other foundational components, as well as heavy structural components such as rolling mill frames and crane booms;
Aerospace: Machining large, thin-walled components such as aircraft fuselage frames, engine casings, and rocket fuel tanks, requiring high precision and stability;
Shipbuilding and Offshore Engineering: Machining large components such as ship engine blocks, propulsion shaft flanges, and offshore platform columns, meeting the cutting needs of high-strength, corrosion-resistant materials;
Energy Equipment Manufacturing: Machining core components such as hydropower station turbine runners, generator stator frames, and wind turbine main shafts, meeting the requirements of ultra-large size and ultra-high precision machining;
Rail Transportation: Machining large structural components such as high-speed rail bogies and subway vehicle frames, ensuring stability and safety during operation. In these fields, industrial heavy-duty automatic planers are not just “production tools” but also the “core engine” driving technological advancement in the industry. For example, a heavy machinery company, through the introduction of high-end heavy-duty automatic planers, reduced the machining cycle of large machine tool beds from 15 days to 5 days, improving accuracy by 30%, and providing a key guarantee for breakthrough performance in domestic heavy-duty machine tools.
VI. Design and Operation and Maintenance: Special Considerations for Balancing “Reliability” and “Affordability”
Due to their large size, complex structure, and high cost (conventional heavy-duty automatic planers can cost millions of yuan each, with ultra-heavy equipment exceeding 10 million yuan), industrial heavy-duty automatic planers face special considerations throughout their design, manufacturing, and operation and maintenance lifecycles, balancing “reliability” and “affordability.” This is a key feature that distinguishes them from ordinary equipment. During the design and manufacturing phases, manufacturers must conduct comprehensive structural strength simulation analysis (such as finite element analysis) to ensure that key components such as the machine bed and worktable do not suffer fatigue damage under heavy loads and high-speed operation. Furthermore, a modular design is adopted to facilitate subsequent installation, commissioning, and upgrades. For example, the tool holder, cooling system, and chip removal system are designed as independent modules, allowing for flexible configuration based on user needs.
During the operation and maintenance phase, users must establish a professional maintenance system. These include regular lubrication and precision testing of moving parts such as guide rails and lead screws, and replacement of worn parts. Hydraulic and electrical systems must also be regularly inspected to prevent equipment downtime due to oil leaks or circuit failures. Furthermore, due to the heavy weight and high installation precision of the equipment, relocation or overhaul requires a professional team using specialized equipment (such as a large crane and precision level) to ensure the equipment is restored to its original accuracy.
Despite high initial investment and maintenance costs, the economical value of industrial heavy-duty automatic planers lies in their long-term value—they offer a service life of 20-30 years, far exceeding the 10-15 years of conventional planers. Furthermore, their high-precision and efficient machining significantly reduces workpiece scrap rates and subsequent processing costs, generating long-term profits for businesses.
Conclusion: The Unique Value of Industrial Heavy-Duty Automatic Planers—A Manufacturing “Heavyweight”
The uniqueness of industrial heavy-duty automatic planers lies in their combination of “heavy” and “precision,” a fusion of “power” and “intelligence.” They not only possess the “hardcore” capability to process large components, but also embody cutting-edge innovations in precision control, automation, and intelligent technologies, making them key infrastructure supporting heavy equipment manufacturing and driving the development of high-end industries.
